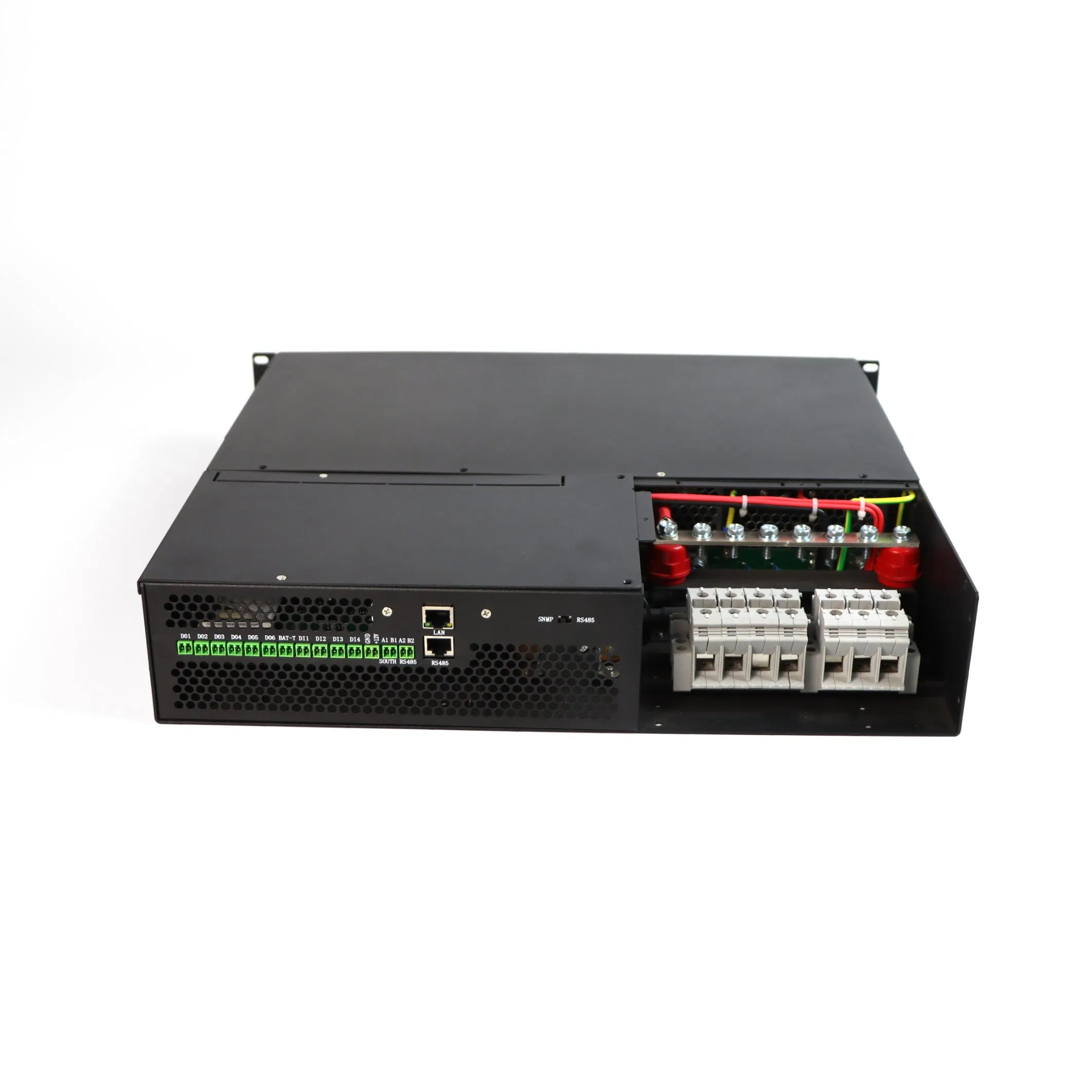

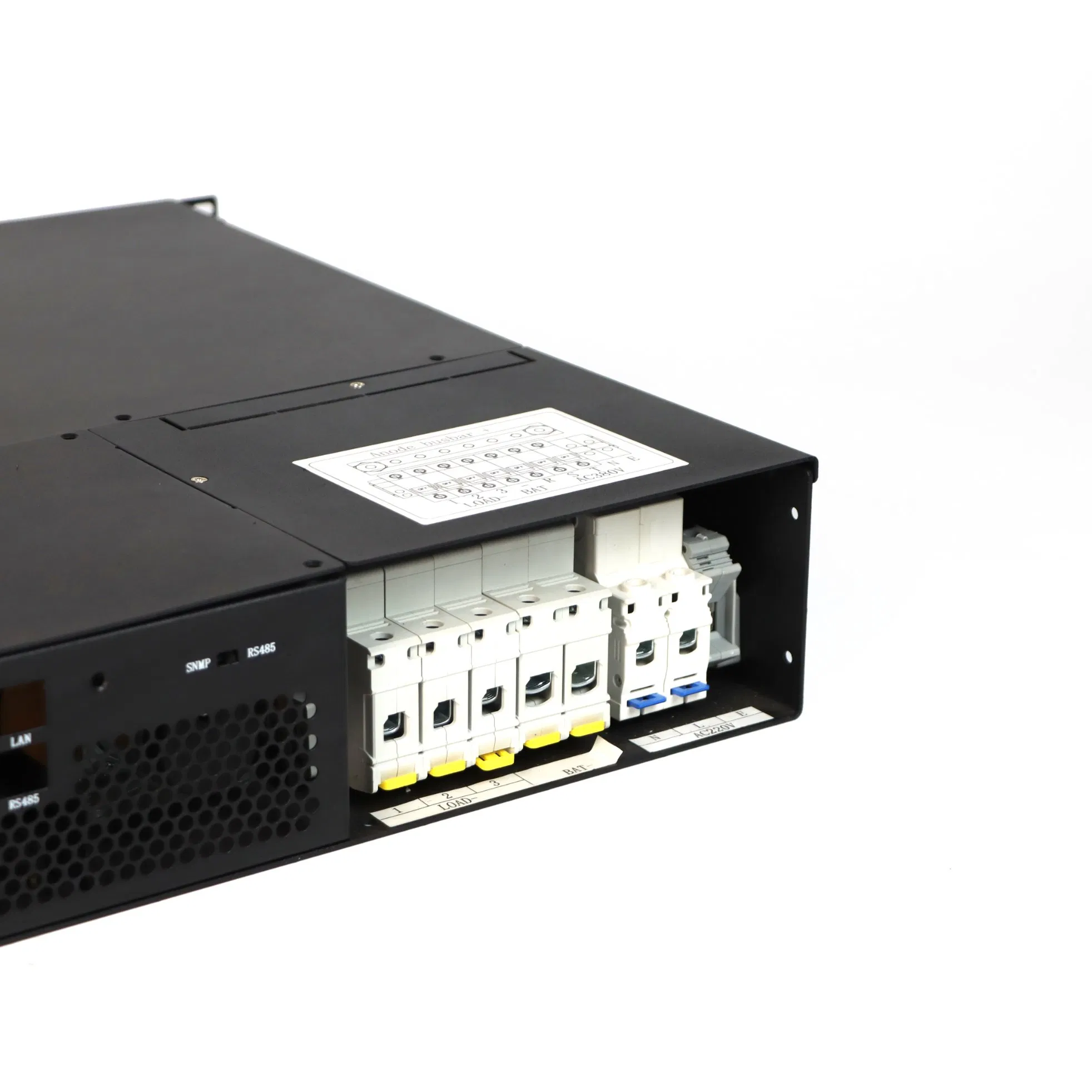

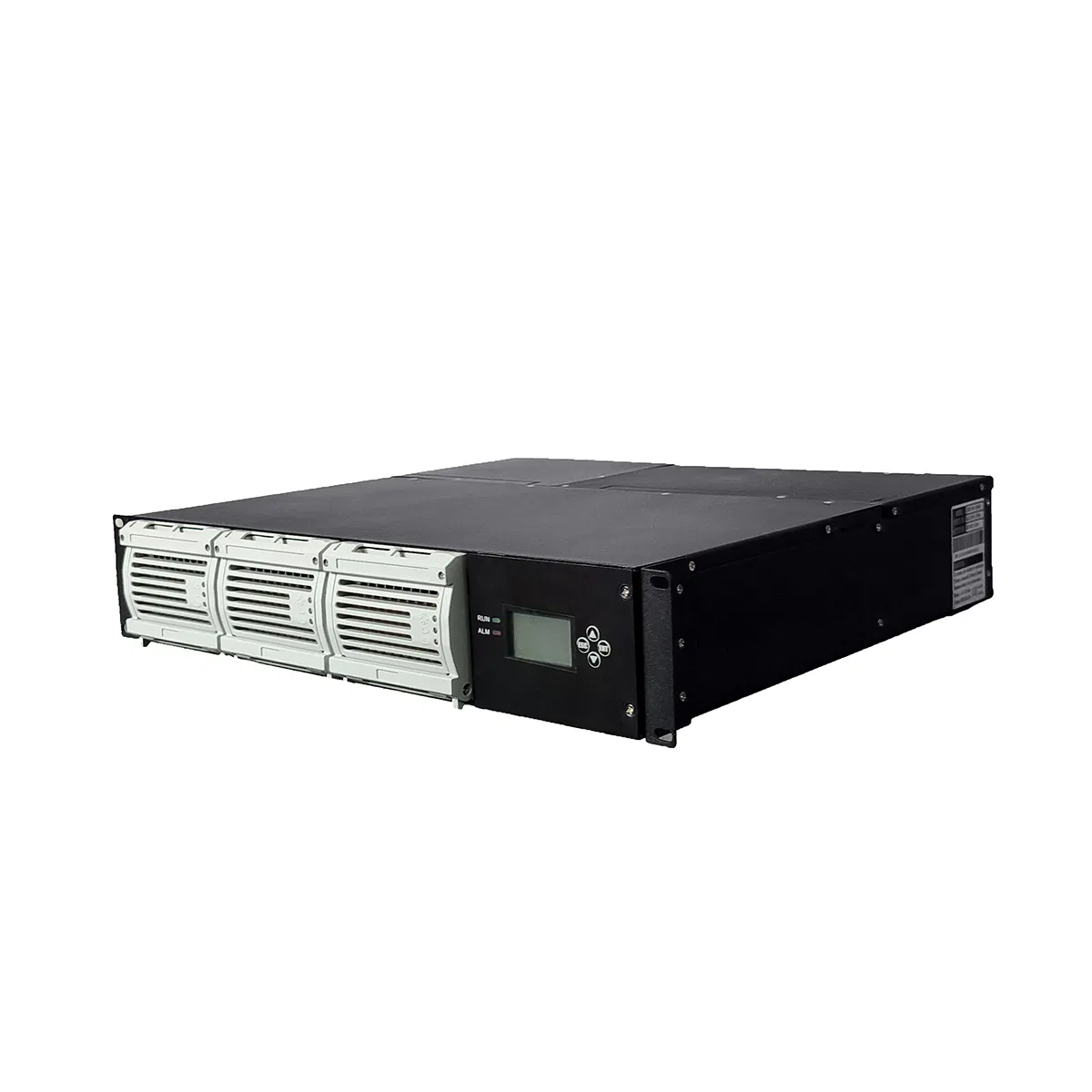

19 Inch Rack Mount 48VDC Rectifier System 2u 50A Rack Type Battery Charger DC Power Supply Telecom Rectifier System for Data Center

Basic Information

Model NO.BVT220/48-50AS

Output Power3000W

Input Voltage220V

System TypeRectifier System

ModulationPWM

CertificationCE, ISO

ProtectionShort Circuit, Overtemp, Overload, Overvolt

ApplicationLaboratory/CCTV/Data Center

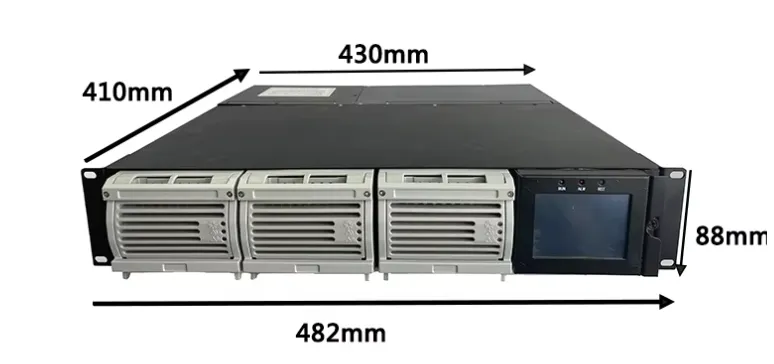

Dimensions482*430*88mm

Product Description & Features

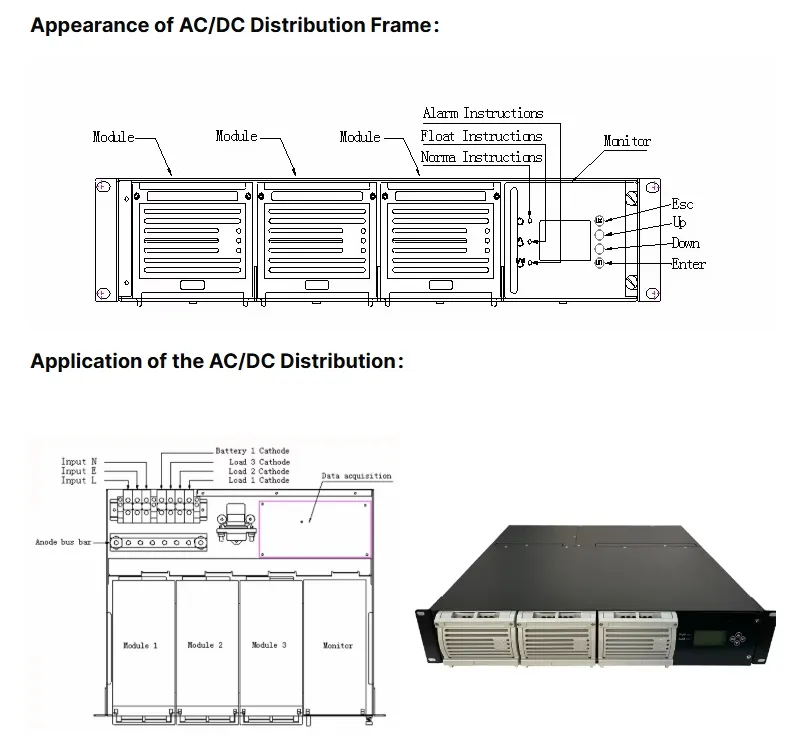

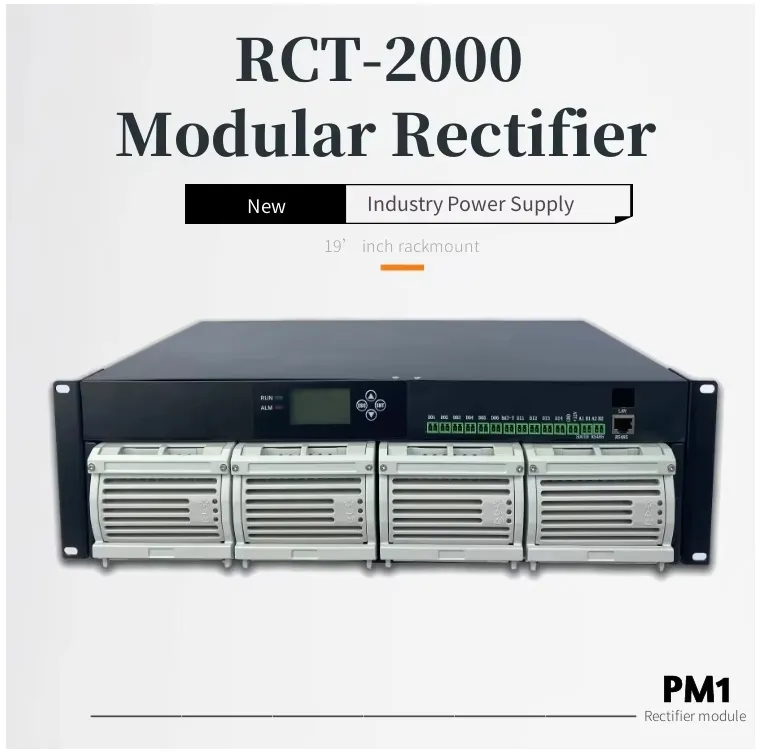

RCT2000 Series Rectifier System (48Vdc) is an embedded DC power system widely deployed in Telecom and Industrial environments. The system is composed of high-efficiency rectifier modules and monitoring units, offering customizable configurations for power distribution.

Widely operating range of AC input voltage: 90~290Vac

Compact 19-inch rackmount shelf (2U Height)

Real-time detection with sound-light alarm systems

Perfect battery management with temperature detection

Scalable capacity: Up to 150A per 2U system (800A max)

Parameter	Details
Rectifier Module	BR483000
Efficiency	93.2%
Max Power Capacity	3000W
Output Voltage	-53.5Vdc (Adjustable -43 to -58Vdc)
Output Current	50A (Adjustable 1-50A)
AC Input Range	85Vac - 300Vac
Frequency	45-65Hz
Protection Rating	IP21

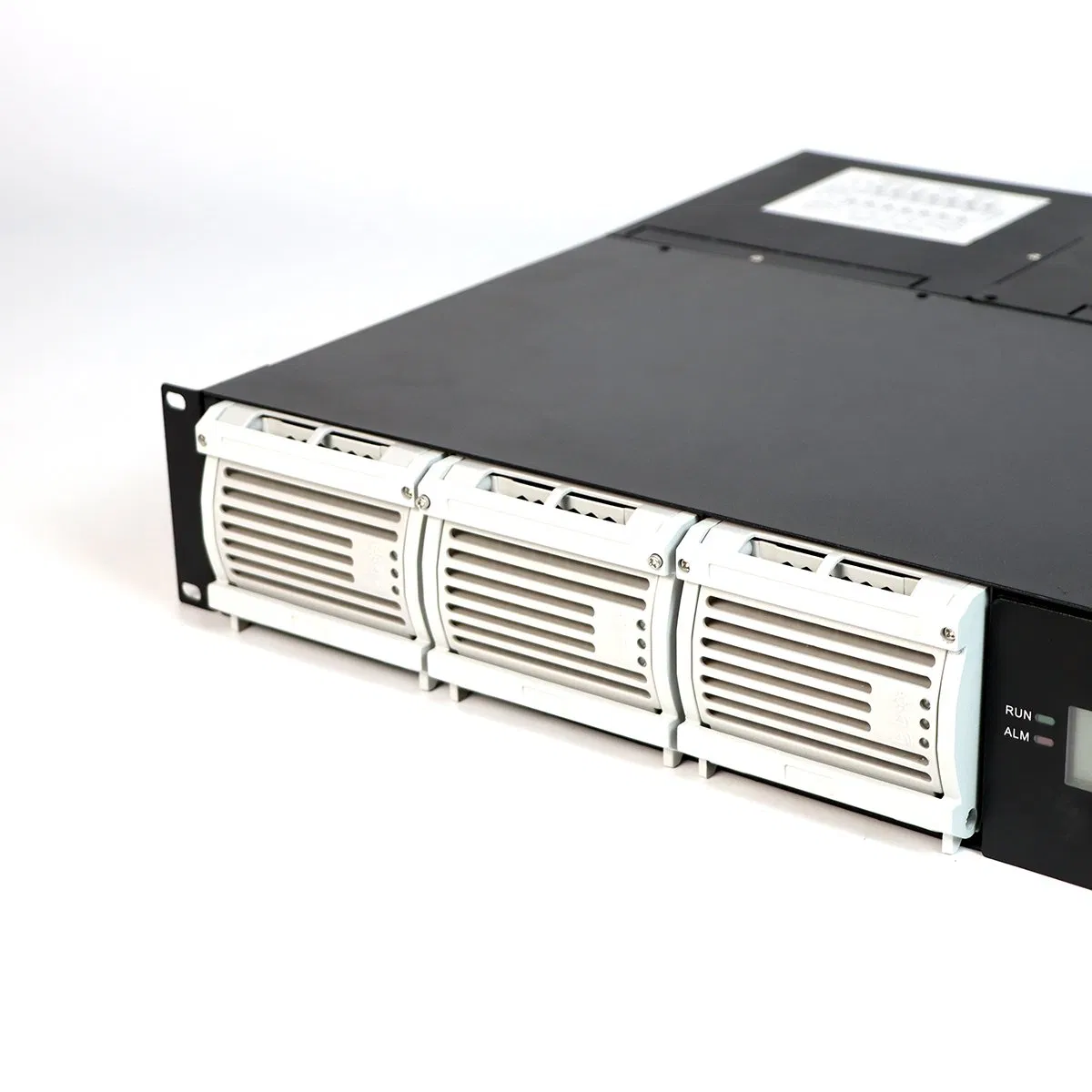

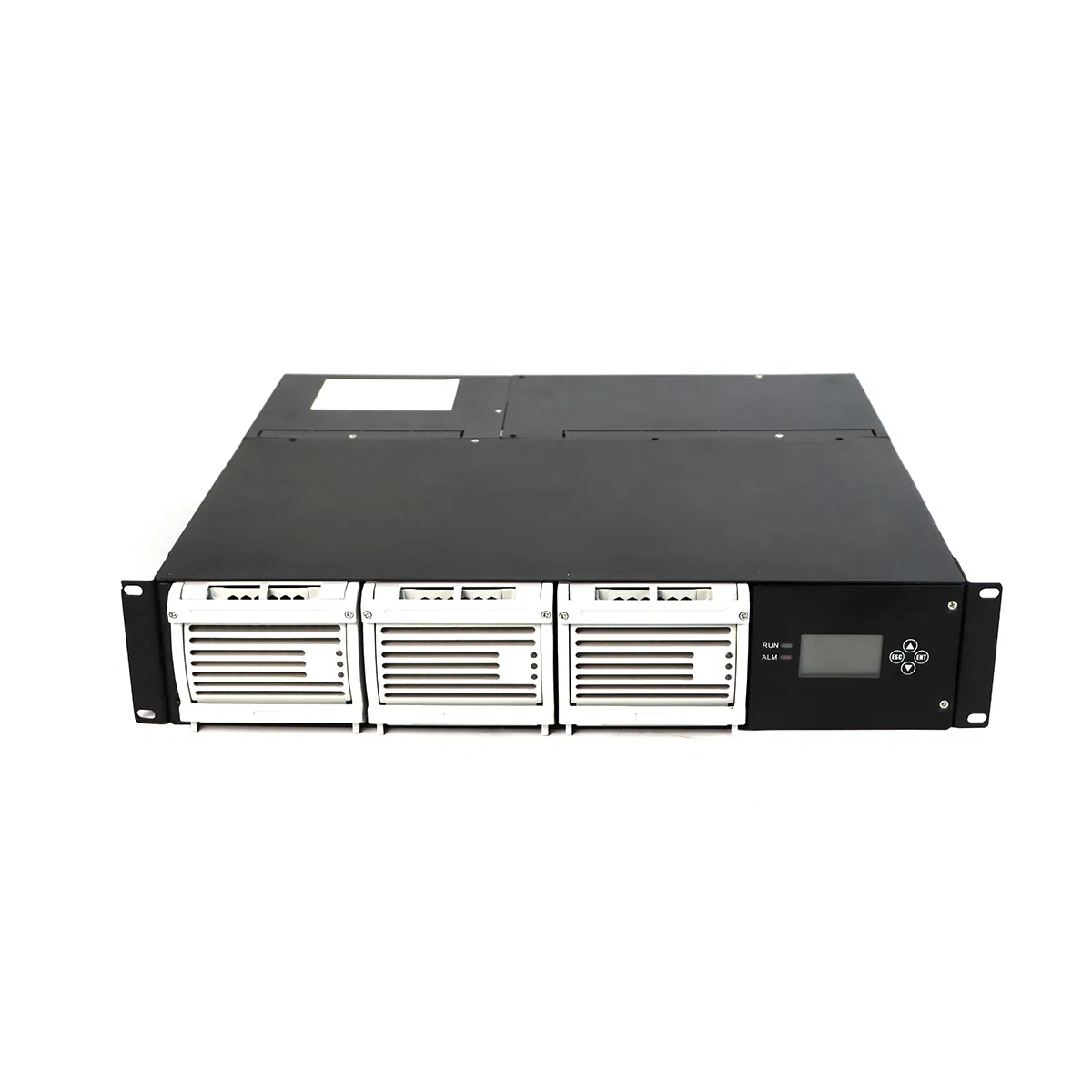

Product Showcase

Industrial Capabilities

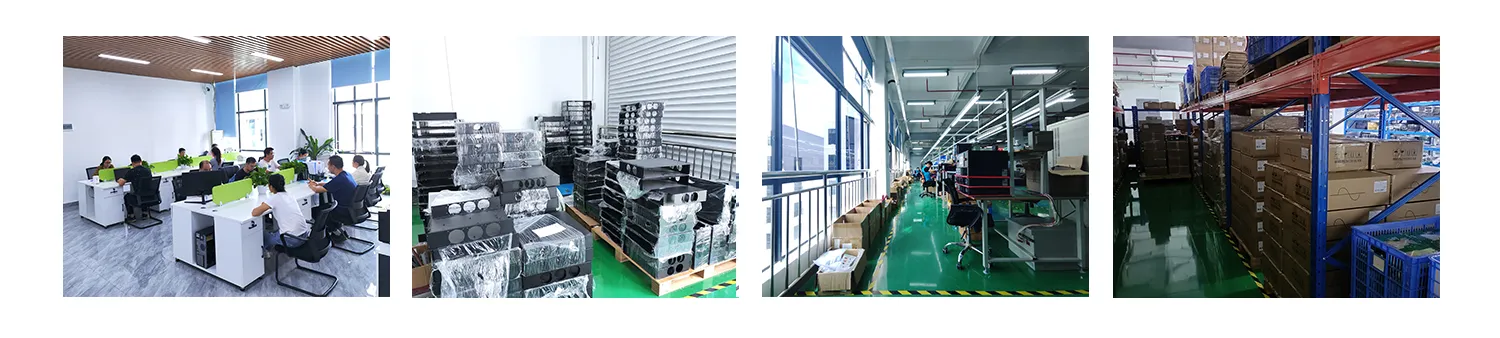

Our solutions cover a wide range of power conversion needs including Stand alone/Modular Redundancy inverters (1KVA~60KVA), Modular Rectifier systems, DC Converters, and SCR STS. All products meet international standards with CE and ISO9001 certifications, backed by advanced production lines and a rigorous quality control system including SMT, assembly, and aging tests.

Frequently Asked Questions

Q1: Does the system support battery charging?

Yes, the system is specifically designed for battery charging applications, widely used in N+1 power supply setups and comprehensive battery charging management.

Q2: Does the product support remote monitoring functions?

Yes, most products support SNMP and come with built-in RS485 communication as standard for real-time data monitoring and control via software.

Q3: What is the operating temperature range?

The system supports stable operation within a temperature range of -20°C to 60°C. Using air conditioning in high-temperature environments can further increase product lifespan.

Q4: Can the inverter handle high start-up loads?

Yes, it features superior overload capacity and can withstand full-load startup. It includes a bypass switch to automatically transition to bypass power when overloaded.

Q5: What are the integrated protection functions?

The system includes input under-voltage protection, anti-DC input reverse connection, buffer protection, over-voltage/overload/short-circuit protection, and over-temperature control with dedicated fans.

Q6: Are there altitude limitations for operation?

Optimal performance is reached below 2000 meters. For altitudes above 3000m, the system may require derating (approx. 1% per 100m rise) to ensure stable operation.
