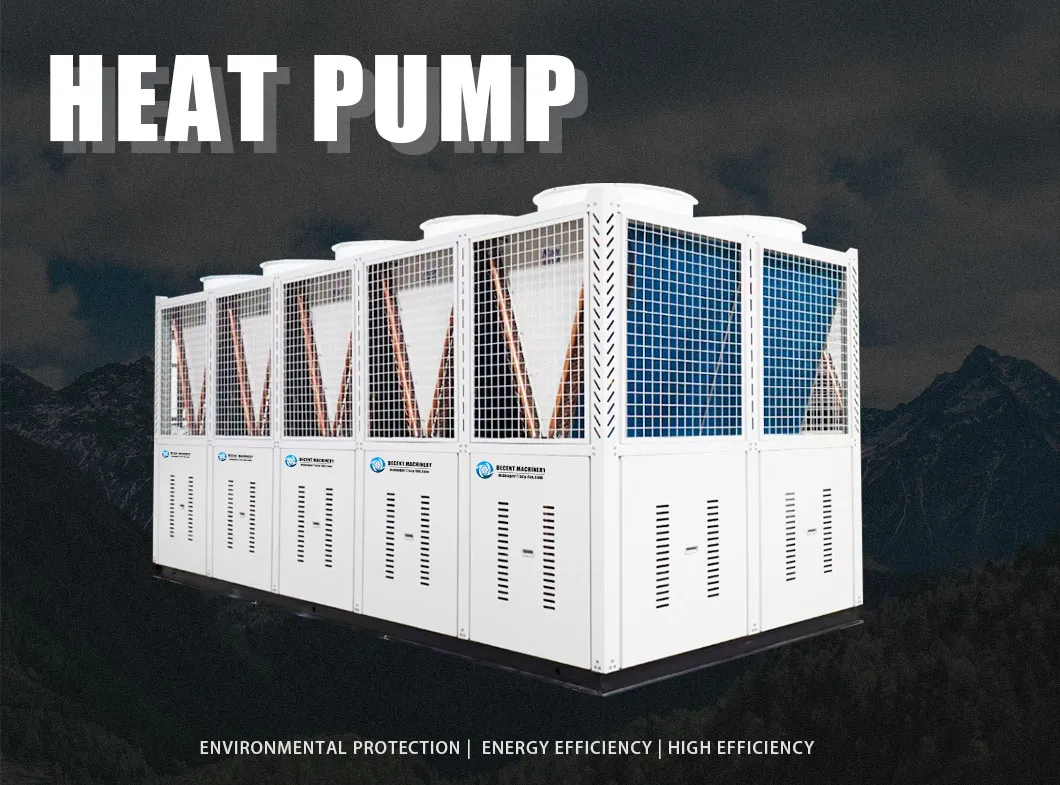

An Air Source Heat Pump utilizes low-temperature heat energy in the outdoor air for heating and can provide indoor cooling through reverse operation. It regulates indoor temperature by recycling air, achieving significant energy saving and environmental protection.

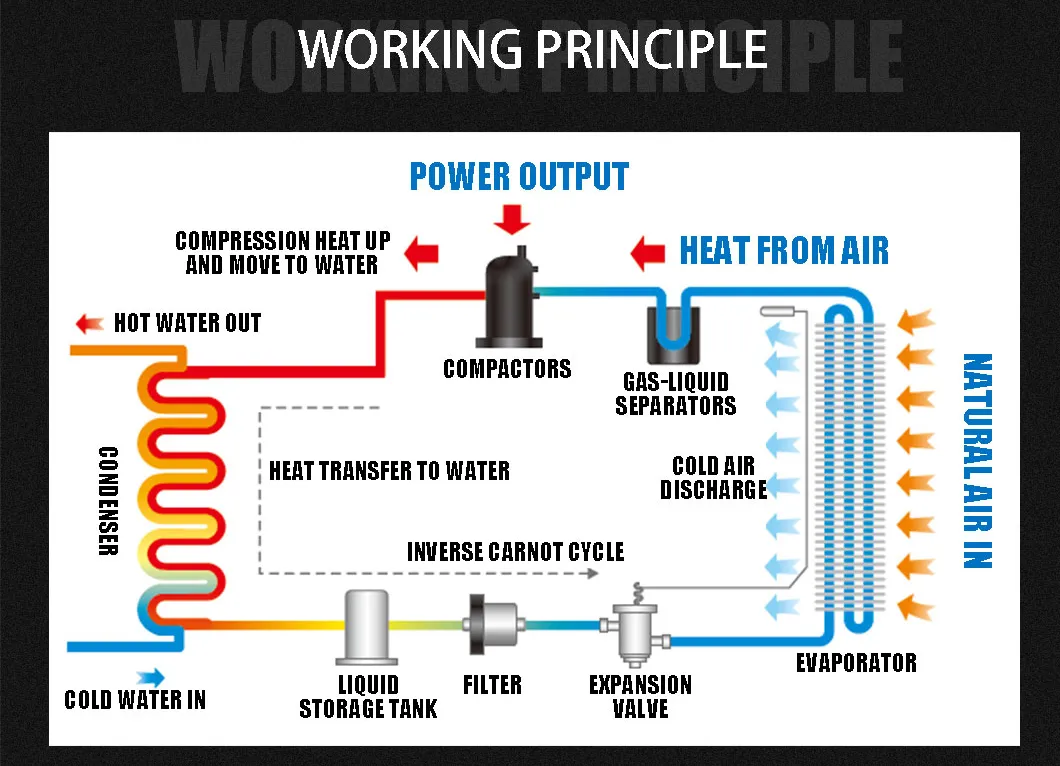

The system uses evaporation, compression, and condensation technologies to transfer heat energy from outdoor air to the interior. It consists of an indoor unit, an outdoor unit, and efficient piping to diffuse heat throughout the space.
| Performance Metric | Unit | 12HP Model | 36HP Model | 50HP Model |
|---|---|---|---|---|
| Rated Cooling Capacity | KW | 32 | 95 | 140 |
| Cooling Power Input | KW | 10.5 | 31.5 | 45 |
| EER | - | 3.05 | 3.02 | 3.1 |
| Rated Heating Capacity | KW | 35 | 105 | 150 |
| Heating Power Input | KW | 11 | 33 | 48 |
| COP | - | 3.18 | 3.18 | 3.13 |
| Refrigerant Type | - | R410A | ||
| Noise Level | dB(A) | 50 | 72 | 78 |

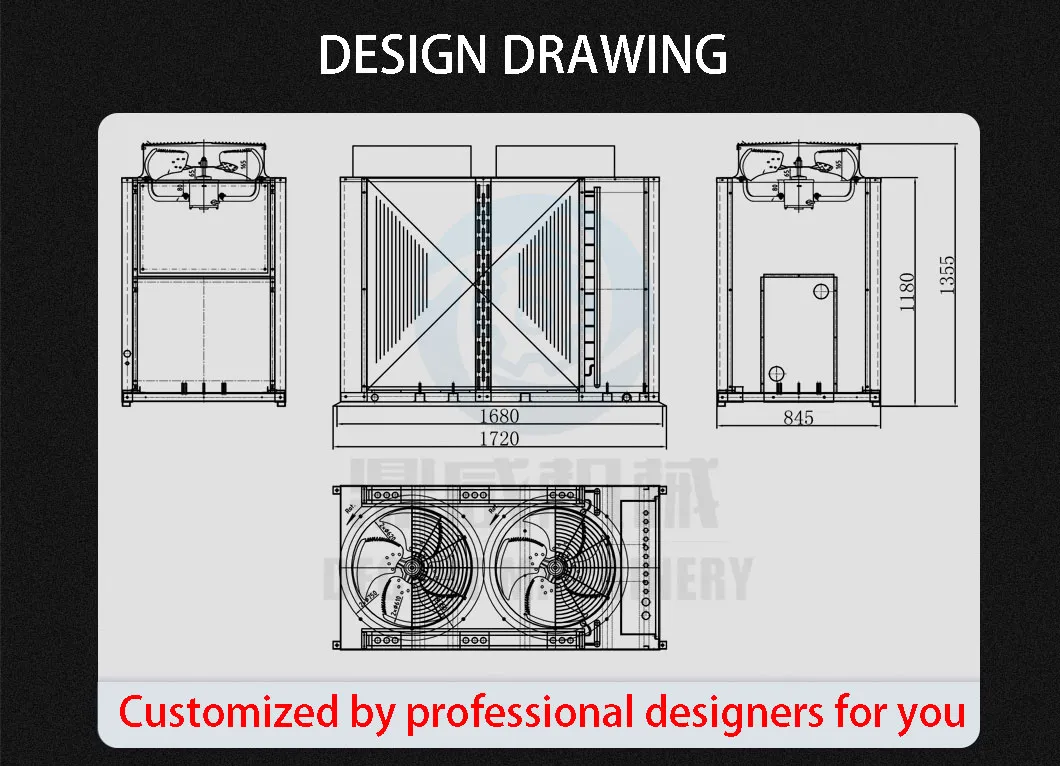

| Dimensions (L*W*H) | mm | 1100*940*1150 | 2200*1300*2100 | 2270*1280*2300 |
Air source heat pumps are ideal for residential, commercial, and industrial buildings. They are especially suitable for projects where space is limited or where ground-source heat pump installation is not feasible. Widely recognized globally for reliability and efficiency.
Dedicated to building integrated platforms for global buyers, we provide high-efficiency residential and commercial systems. With a deep understanding of the HVAC/R supply chain, we offer affordable one-stop project solutions including OEM and ODM services. Our constant focus remains on quality, delivery, and value for every project.
A: It transfers existing heat from the outside air rather than generating heat through combustion or pure electric resistance, providing much higher energy output per unit of electricity consumed.
A: Yes, our units are designed to operate efficiently within a temperature range of -10°C to 45°C, making them suitable for most climates.
A: Our units are engineered for low noise, with levels 5% below national standards, ensuring a quiet environment for residential and commercial use.
A: Yes, air source heat pumps are versatile systems that can automatically switch between heating in winter and cooling in summer.
A: With proper maintenance and use of high-quality materials like stainless steel and aluminum alloy, these systems are built for long-term durability and reliability.
A: No, unlike ground-source pumps, air-source units are easy to install on various building types without the need for geothermal excavation.
