Ultra-Clear LED Advertising Display Screen for Retail Solutions

Basic Information

Model NO.

rled01

Pixel Pitch

2.5mm

Pixel Configuration

1R,1G,1B

Pixel Density

27,777 dots / m²

Scanning Mode

1/16 Scan

Display Type

LED Video Display

IP Rating

IP43

Certification

CE, RoHS, ETL, FCC

Module Size

320*160mm

Cabinet Material

Die-Casting Aluminum

Refresh Rate

3840/7680Hz

Brightness

600CD/Sqm

Product Description

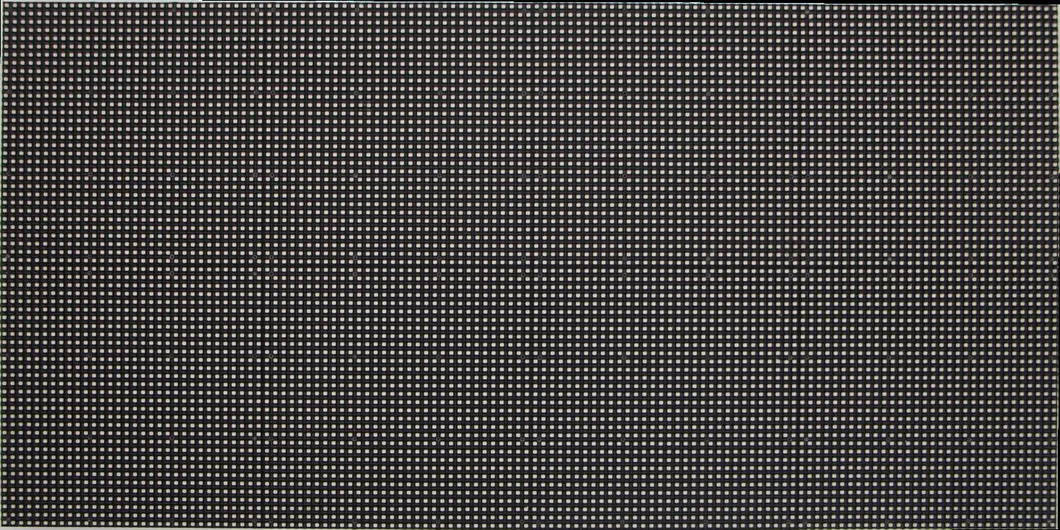

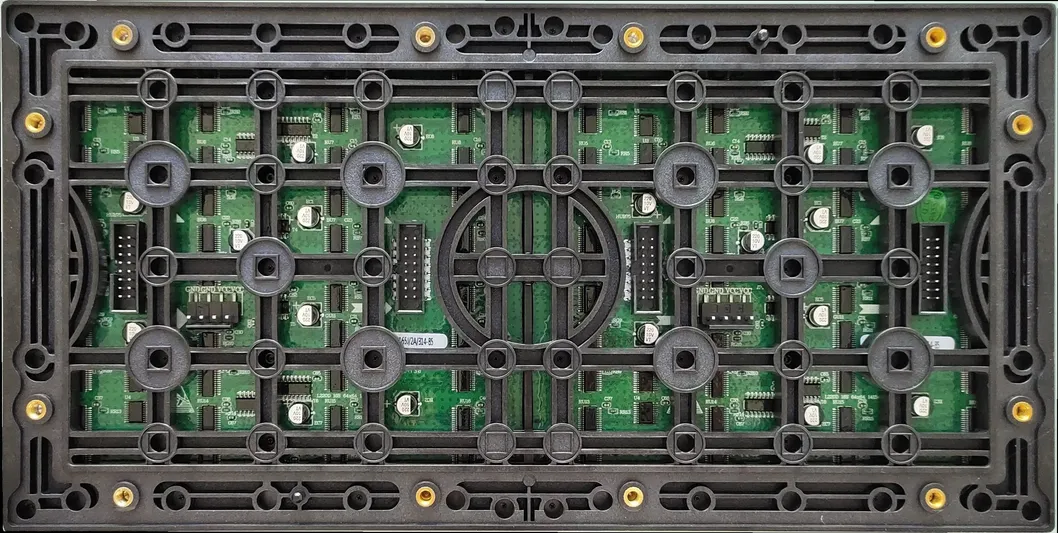

Indoor LED Module Features

Unique mask design, dark black color, high contrast.
Module size 320*160mm, symmetrical and uniform.
Excellent heat dissipation and weather resistance.
Constant current drive for stable performance.
High brightness (over 600 cd/sqm) with superior light distribution.

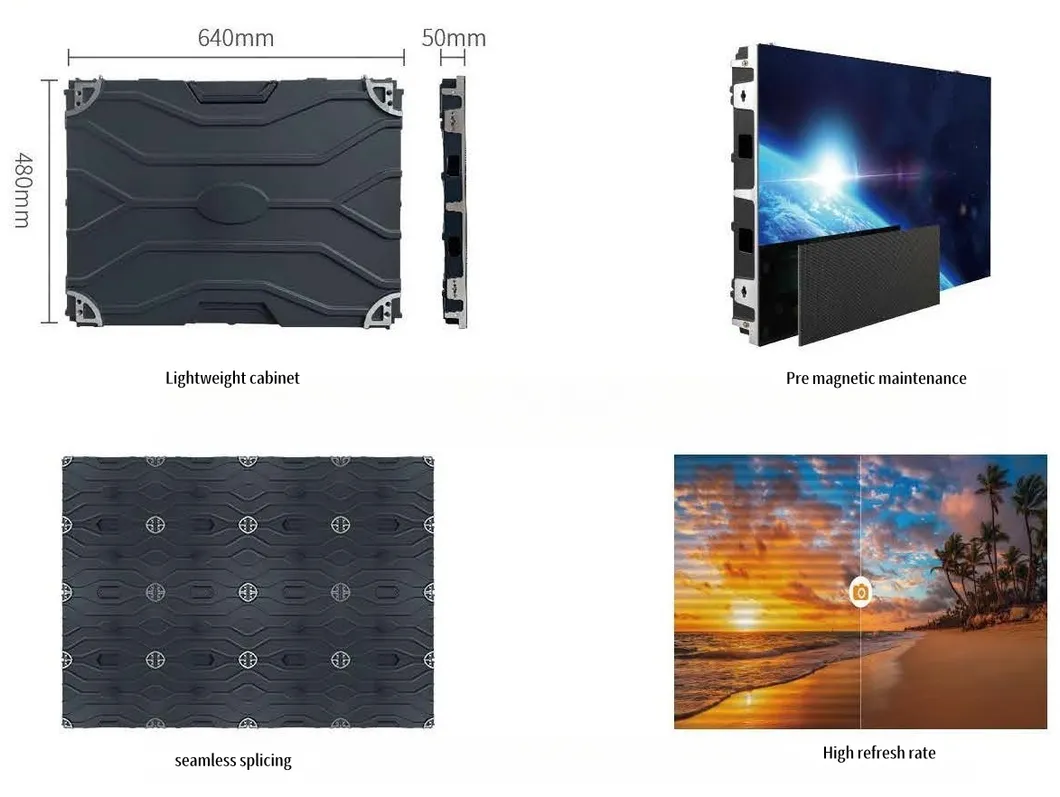

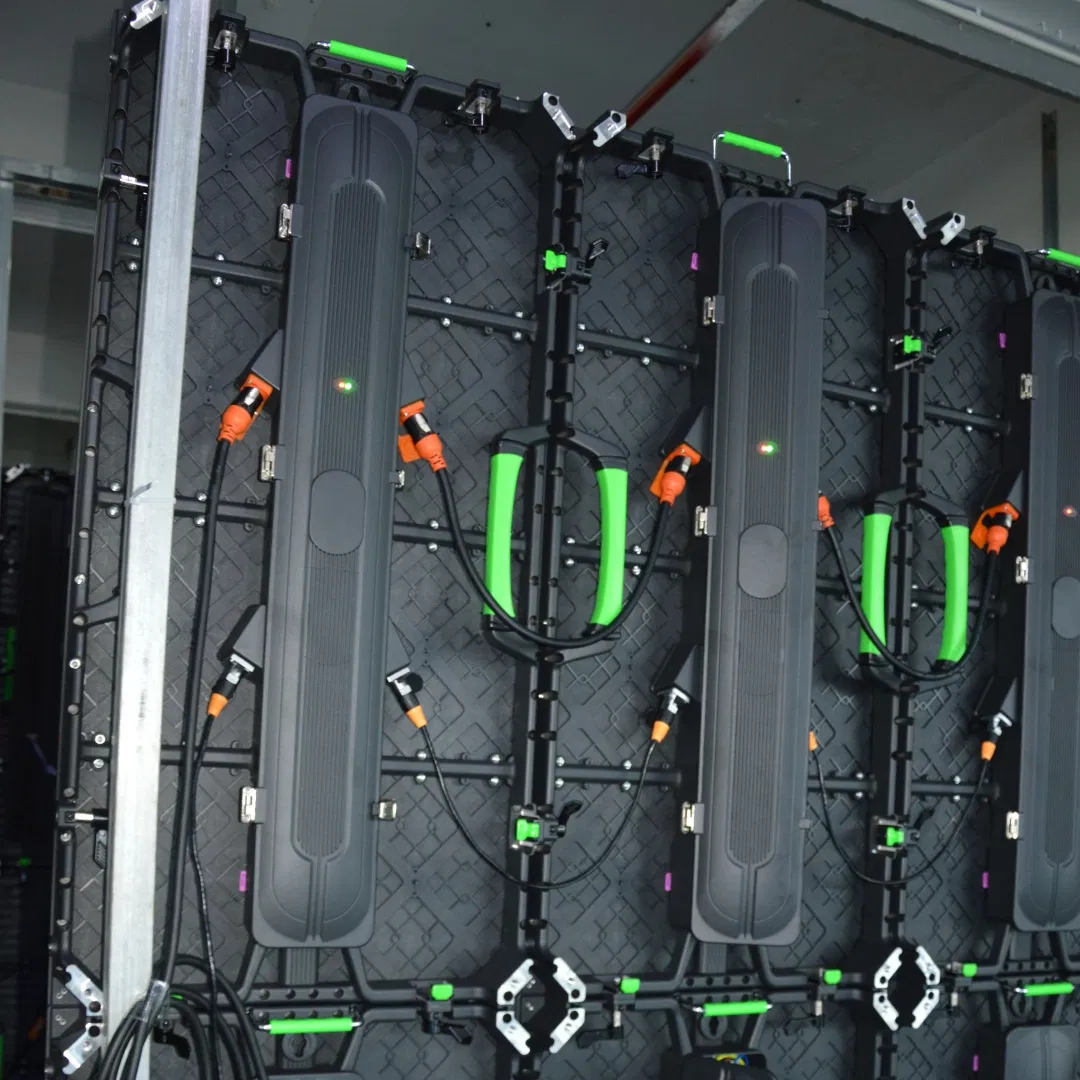

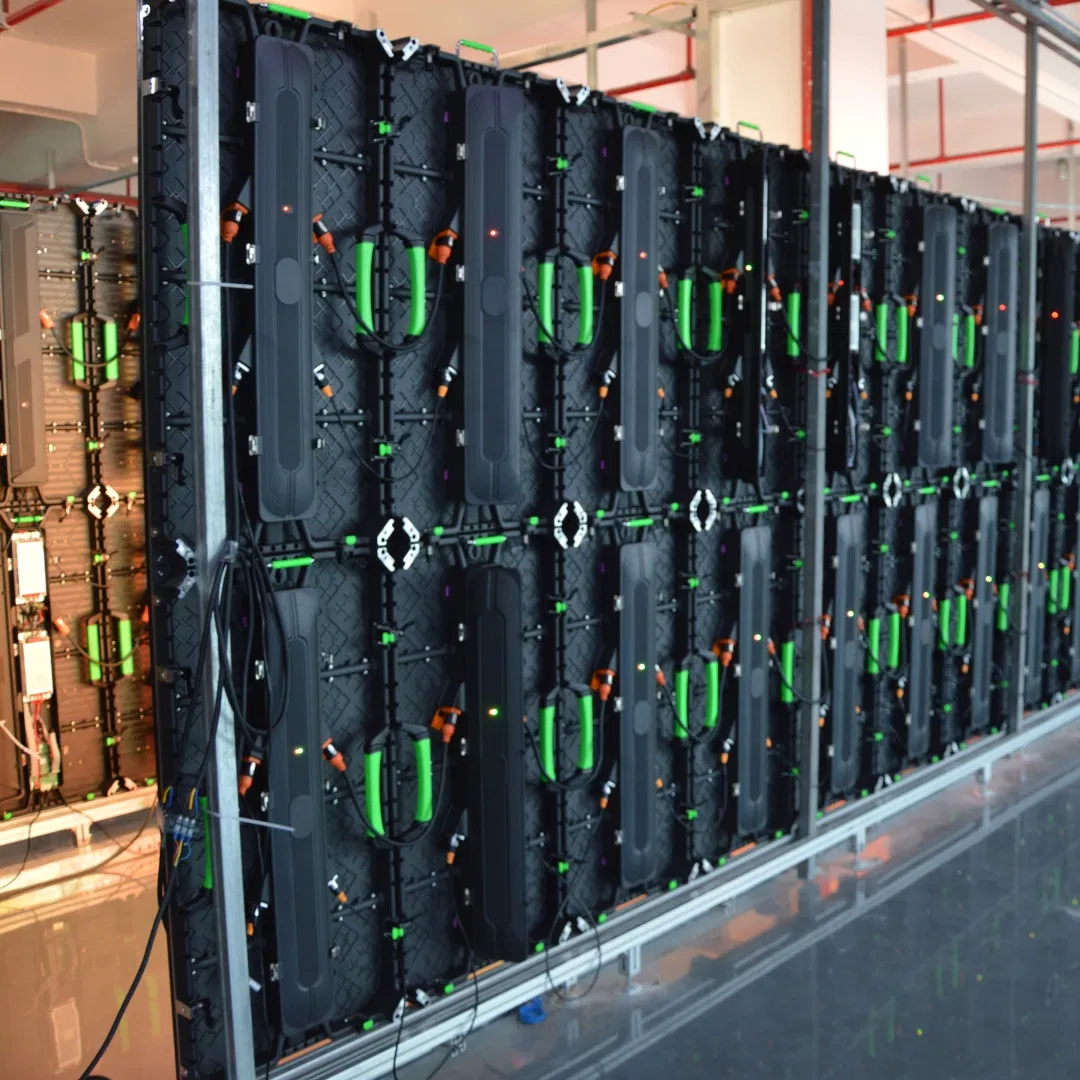

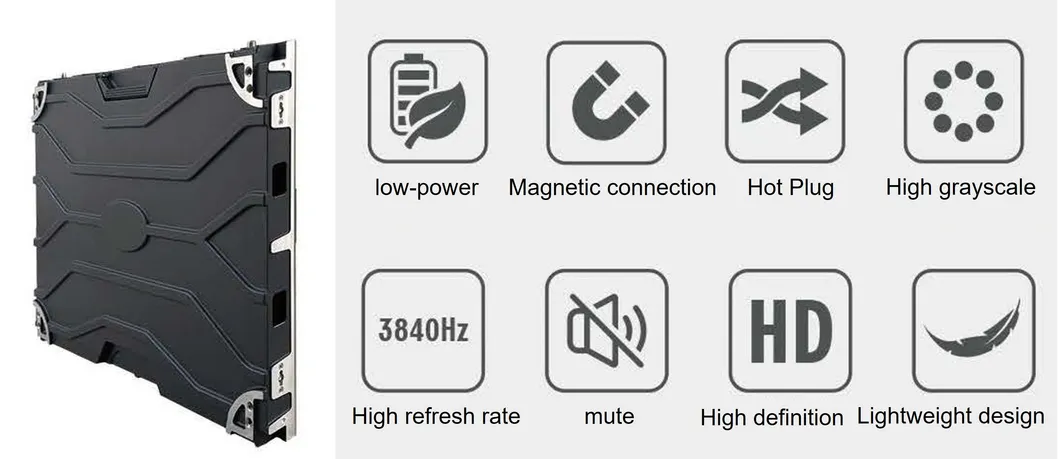

Die-casting Aluminum Cabinet Design

Compatible with all 320 * 160mm modules.
Ultra-slim design: Cabinet thickness is only 6cm.
Seamless splicing for a perfect visual experience.

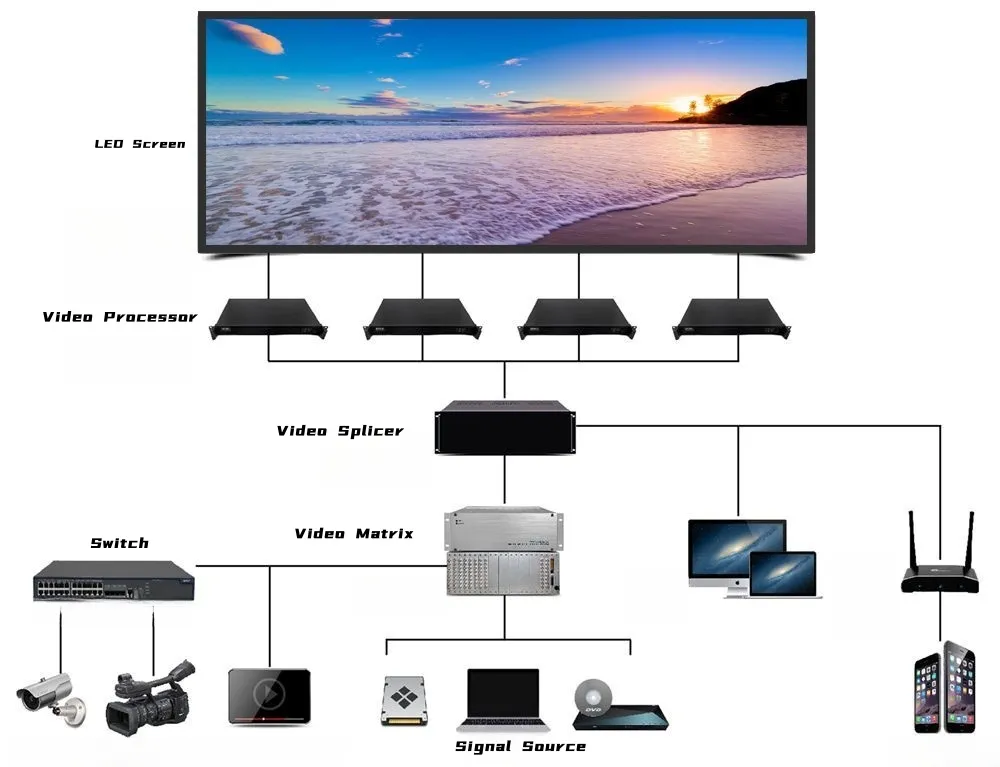

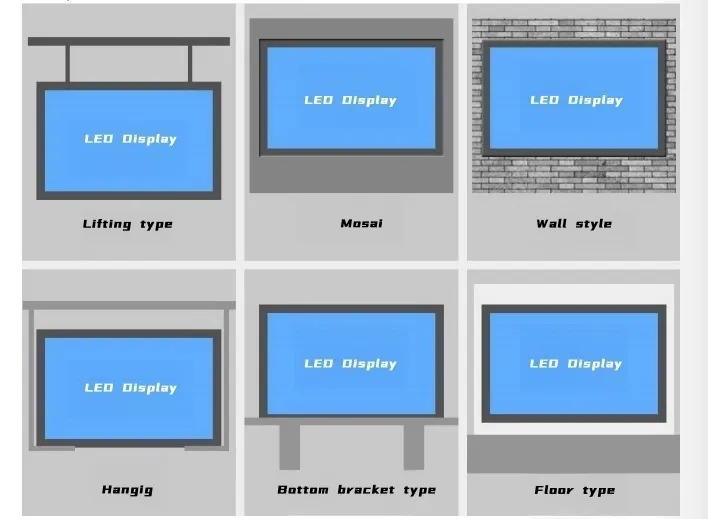

Application System & Installation

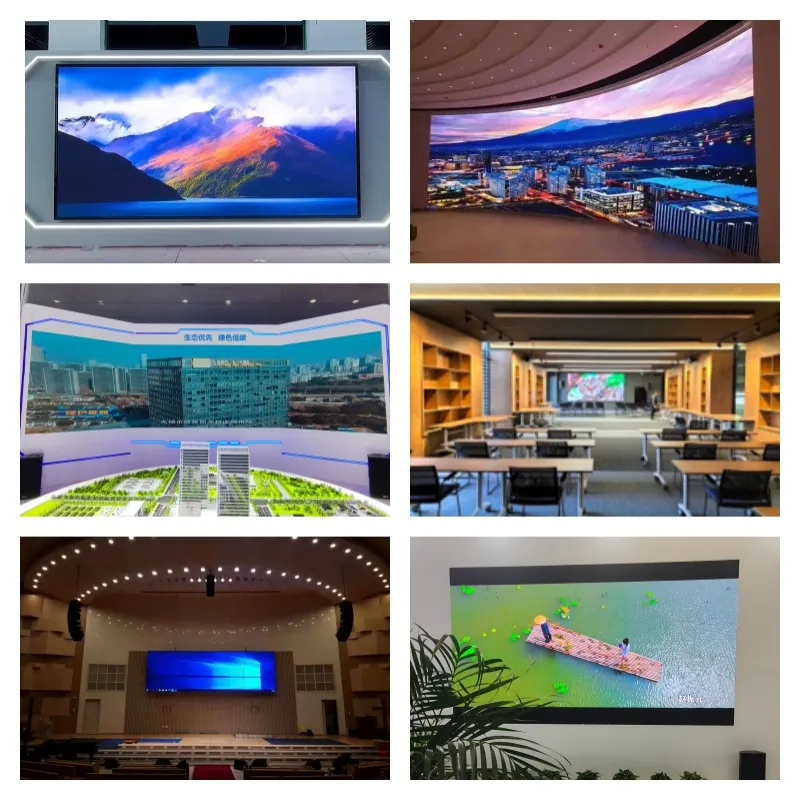

Application Scenarios

Exhibition halls & Command centers
Conference Rooms & Lecture halls
Office buildings & Front desks
Commercial exhibitions & Stage performances

Technical Parameters

Item	P2	P2.5	P3	P4	P5	P6	P10
Pixel Pitch	2.0mm	2.5mm	3mm	4mm	5mm	6mm	10mm
Pixel Configuration	SMD1515	SMD1515	SMD2121	SMD2121	SMD3528	SMD3528	SMD3528
Module Size	320*160mm	320*160mm	192*96mm	256*128mm	320*160mm	384*192mm	320*160mm
Refresh Rate	≥1920Hz	≥1920Hz	≥1920Hz	≥1920Hz	≥1920Hz	≥1920Hz	≥1920Hz
Brightness	≥600cd/㎡	≥600cd/㎡	≥600cd/㎡	≥600cd/㎡	≥600cd/㎡	≥600cd/㎡	≥600cd/㎡
Waterproof	IP43	IP43	IP43	IP43	IP43	IP43	IP43

Packaging & Shipping

About Us & Service

We were originally a company engaged in the production of performance stage trusses. With continuous development, we expanded into the LED display field in 2008, focusing on LED chip packaging, module production, aging testing, and full-screen installation.

Today, we are experts in performing arts technology solution services, providing intelligent equipment integration for global stages, cultural venues, and commercial spaces. Our products are exported to more than 20 countries worldwide with a strong reputation for professional service.

Our Advantages

1. One-stop Solution: Custom solutions tailored to your specific needs.

2. Complete Supply Chain: Covering materials, modules, and full standard or custom products.

3. Customer-Centric: We focus on value-oriented problem solving rather than just sales.

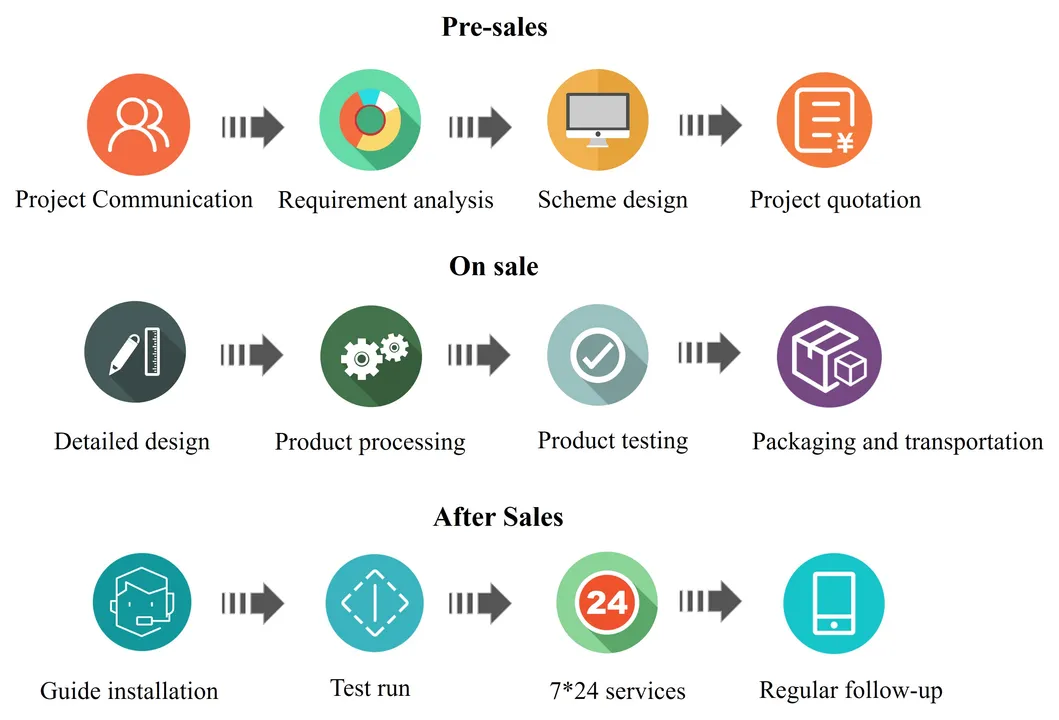

4. Refined Service System: Comprehensive support from packaging and transport to follow-up visits.

5. Global Market Layout: Serving over 1,000 customers across North America, South America, and Europe.

Frequently Asked Questions

Q1: What is your minimum order quantity?

A1: Your order can accept any quantity. Prices for large quantities are negotiable.

Q2: What is the lifespan of an LED display?

A2: LED displays typically have a lifespan of 100,000 hours, depending on component quality and usage.

Q3: When will you deliver?

A3: Depending on the order size and quantity, we typically deliver finished LED screens within 10-20 days.

Q4: How long is the warranty period?

A4: Our standard warranty is 2 years. Extended warranty options are available upon request.

Q5: Will you provide free installation design?

A5: Yes, we provide free design drawings based on your specific installation site environment.

Q6: How is after-sales service guaranteed?

A6: We provide a professional technical team for remote guidance, debugging, and problem-solving. On-site technical services are also available if required.
